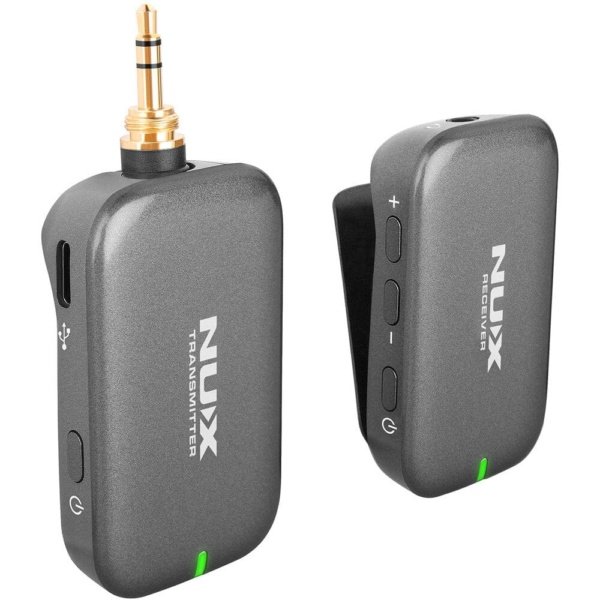

NU-X B7PSM 5.8 GHz Wireless In-Ear Monitoring System
Cut The Cord, Be In Command!
The NUX B-7PSM is a wireless personal in-ear monitor system with automatic RF environment scan, 5.8GHz interference-free broadcasting frequency, and 24-bit / 40 kHz high-quality STEREO audio transmitting. From any position. On any stage. Hear every note in detail with NUX B-7PSM in-ear monitoring system.
SPECIFICATIONS:
Output Volume Adjustment: -64dB~0dB (0.5dB step)
Operating Frequency Band: 5.8 GHz
Operation Length: < 100 feet (30m) outdoor unobstructed, < 33 feet (10m) outdoor with obstructions
Sampling Rate: 24bit / 40 kHz
Frequency Response: 20~19kHz
Latency: < 5.5ms
Dynamic Range: 92 dB
THD+ Noise: <0.6%@1kHz
Built-in Battery Capacity (TX & RX): 450mAh / 3.7V
Battery Running Time: > 4 hours
Battery Charging Time: around 1.5 hours
Power Consumption: TX <90mA,RX < 45mA
TX Impedance: 3.5kO
Maximum Input Level: 7.6Vpp (8.6dBV or 2.7Vrms)
RX Suggestion Phone Impedance: 16~32O
Maximum Output Power: 57mWrms (RLOAD =16O, 1 kHz).
